The MS Multi Treatment Unit improves the quality of the animal treatmenton piglets. The hygienic way of working ensures that the piglets experience less stress and less risk of cross contamination.This leads to better growth rates, less mortality and a reduction in use of antibiotics.
Module MS P250: The MS P250 is a module on the MS Multi Treatment Unit with which fluids can be administered needle-free with a dosage of 0.5 to 2.5 cc. In this module, the 1.0 cc dosing plug is provided. This module is easy to install on the MS Multi Treatment Unit and after connecting to the compressor, the MS P250 is ready for use. The injection power can be set using the pressure reducing valve.
Standard is a 1.0 cc dosing plug. Optional dosing plugs of 0.5, 0.75, 1.5, 2.0, and 2.5 cc are available. These can be found at the bottom of this page under spare parts.
| Pieces | 1 |
| Warranty | Standard, in accordance with our general service & warranty conditions, listed under the heading "Customer Service -> Complaints & Returns" at the bottom of this web page. |
| Document note | Always read the user manual before use. |
| Animal group | Pigs |
| Animal group specific | Piglet |
MS Pulse 250 Toolkit
1406510
Seal dose plug for MS Pulse 250
1406517
Injection Gun blue 0,5-2,5 cc MS P250
1406521
Nozzle 0,27 for Injection Gun MS P250
1406525
Nozzle 0,35 for Injection Gun MS P250
1406527
Nozzle 0,20 for Injection Gun MS P250
1406547
Fixed setup for LD 0.5-2.5 inj. gun
1406528
Stationary for MS Pulse 250
1406529
Dose Plug 0,5 cc for MS Pulse 250
1406530
Dose Plug 1,0 cc for MS Pulse 250
1406531

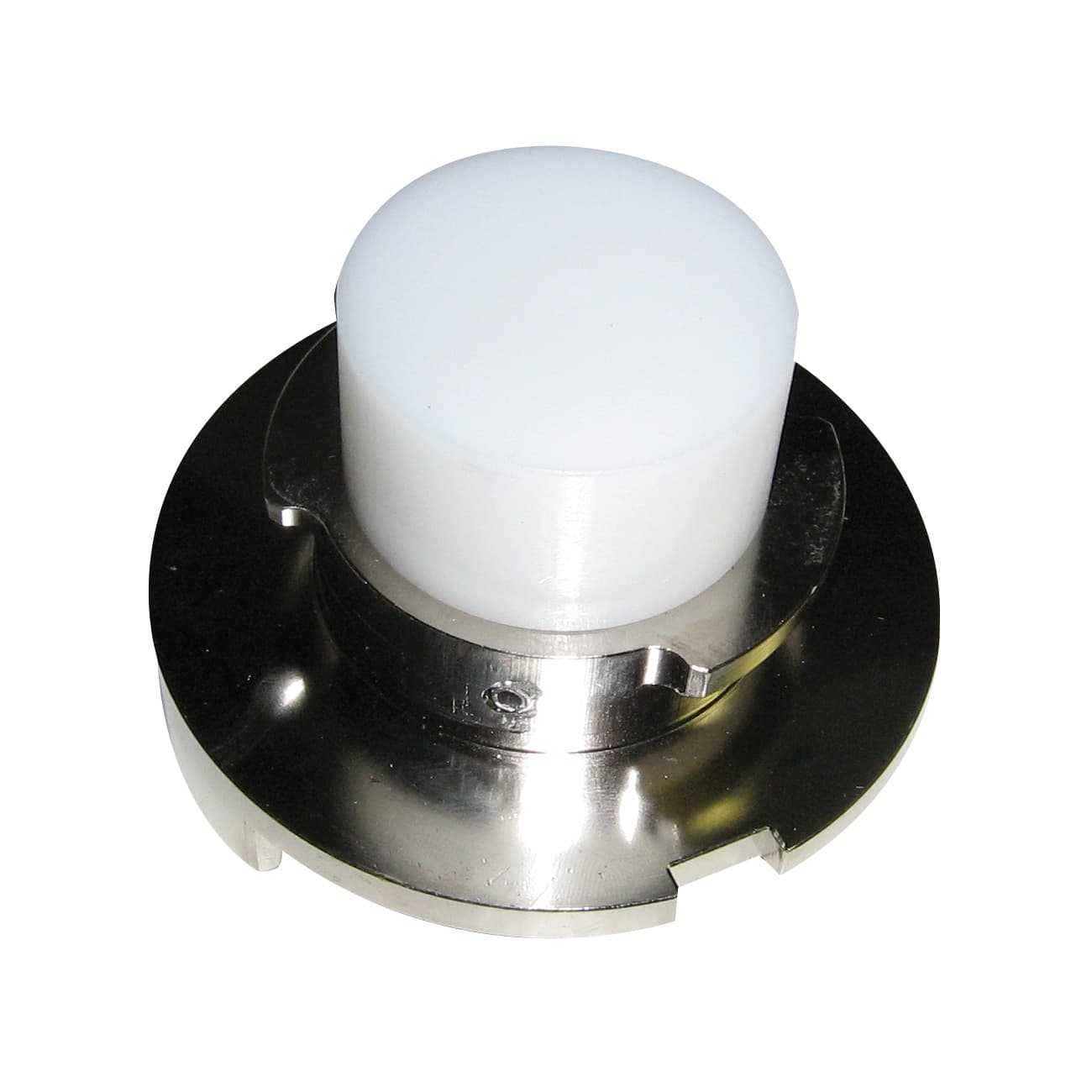

Dose Plug 1,5 cc for MS Pulse 250
1406532

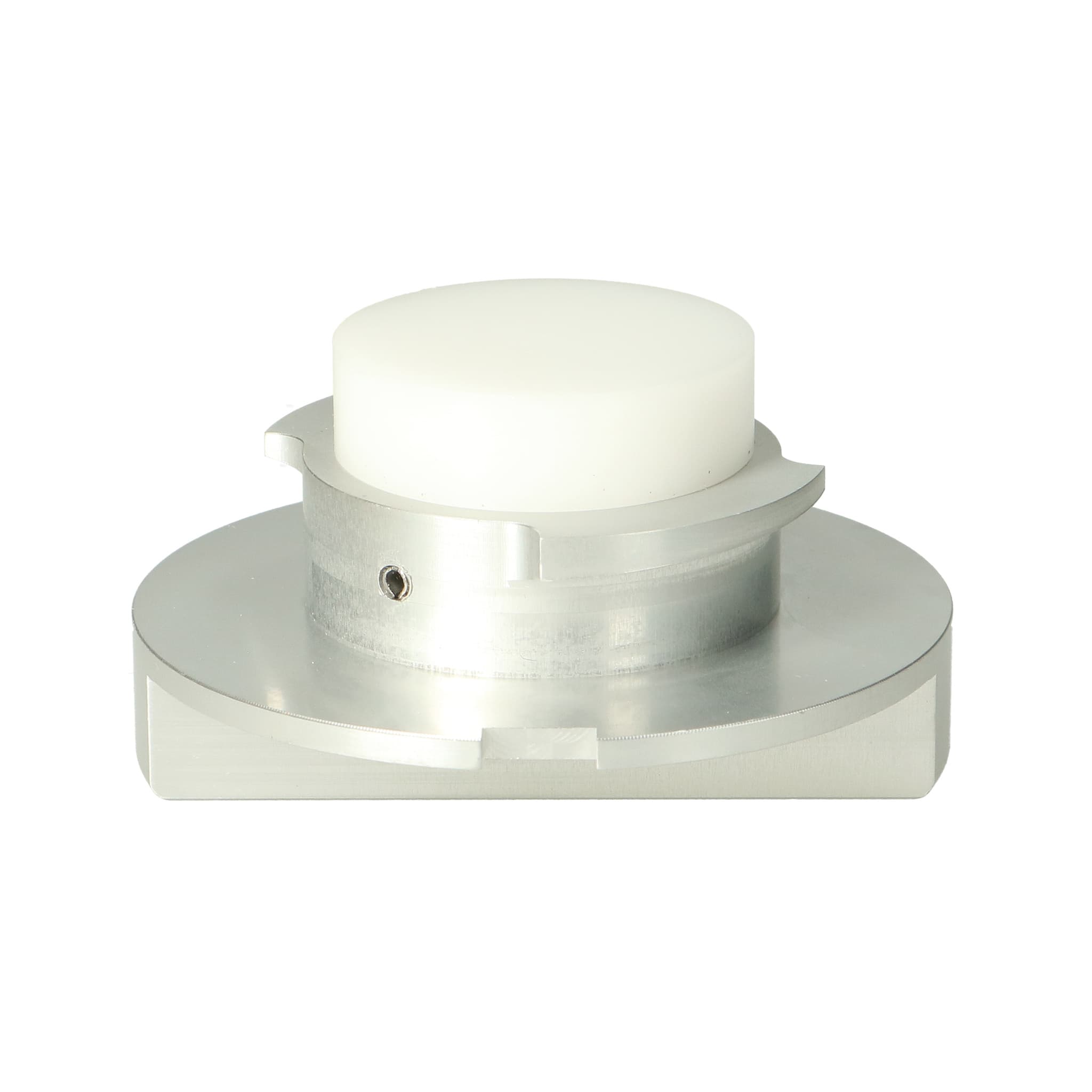

Dose Plug 2,0 cc for MS Pulse 250
1406533
Dose Plug 2,5 cc for MS Pulse 250
1406534

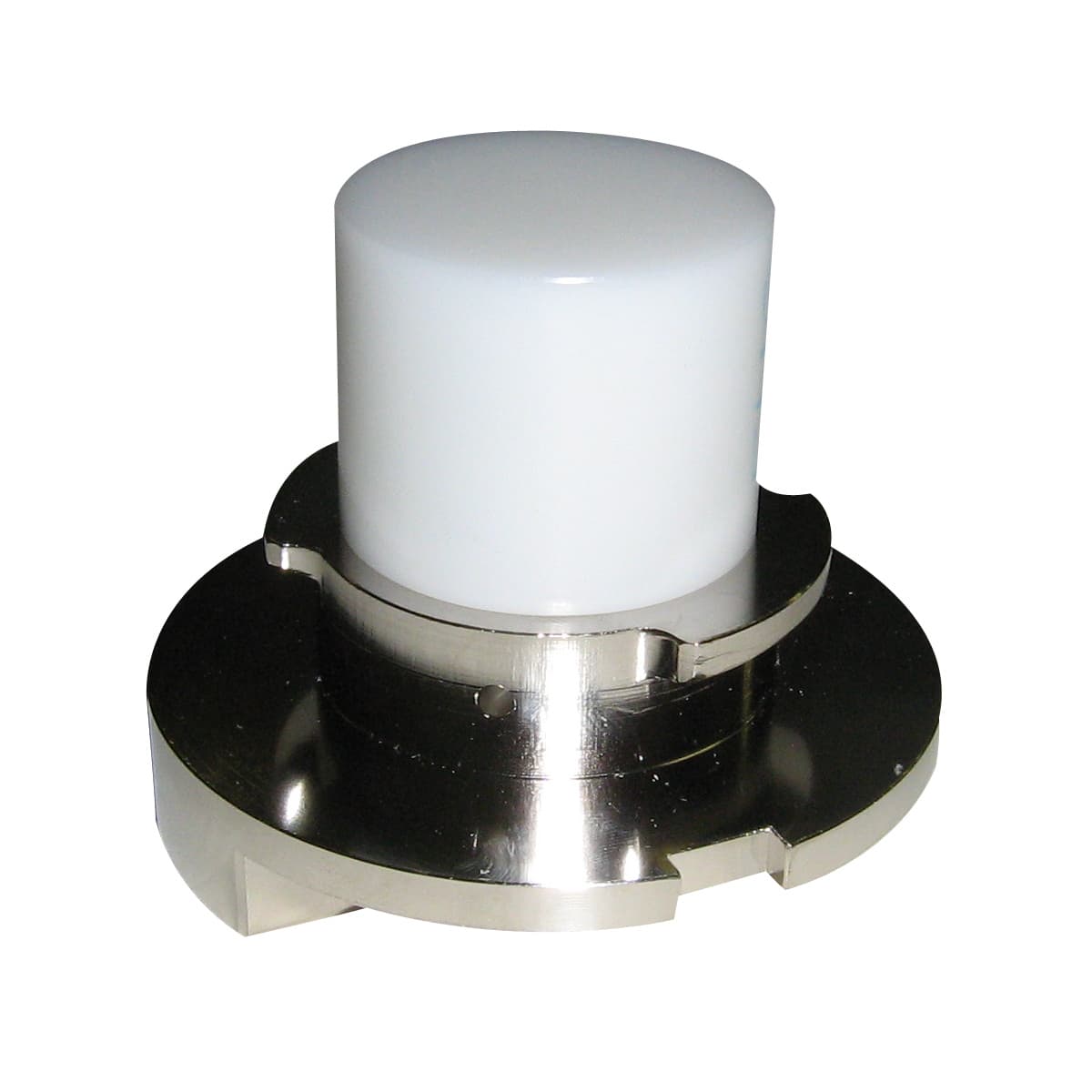

Dose Plug 0,75 cc for MS Pulse 250
1406535
MS Pulse 250 high-pressure hose, 750 mm
1406543
Reducing valve primary for MS Pulse 250
1406561
Spiral air hose for the MS Pulse
1406563
Reducing valve primary for MS Pulse
1406567
Hose Mounting inlet MS Pulse 250
1406573
Bottle mounting,loose bolt 30mm MS P250
1406575
Bottle mounting,loose bolt 20mm MS P250
1406576
Bottle mounting,loose bolt 33mm MS P250
1406577
Direct Bottle Mounting 20 mm for MS P250
1406579
Bottle Holder 600 cc MS Pulse 250
1406581
Spring for stationary MS Pulse 250
1406582
Supply tub, 600 cc for MS Pulse 250 and Oral Dispenser
1406589
MS Contact liquid 20 ml, p/12
2500307
MS Rinse liquid 20 ml, p/12
2500308
Seal (o-ring) D/E, 100 piece bag
8800566
Seal (o-ring) J, 20 piece bag
8800567
Seal (o-ring) G, 100 piece bag
8800568

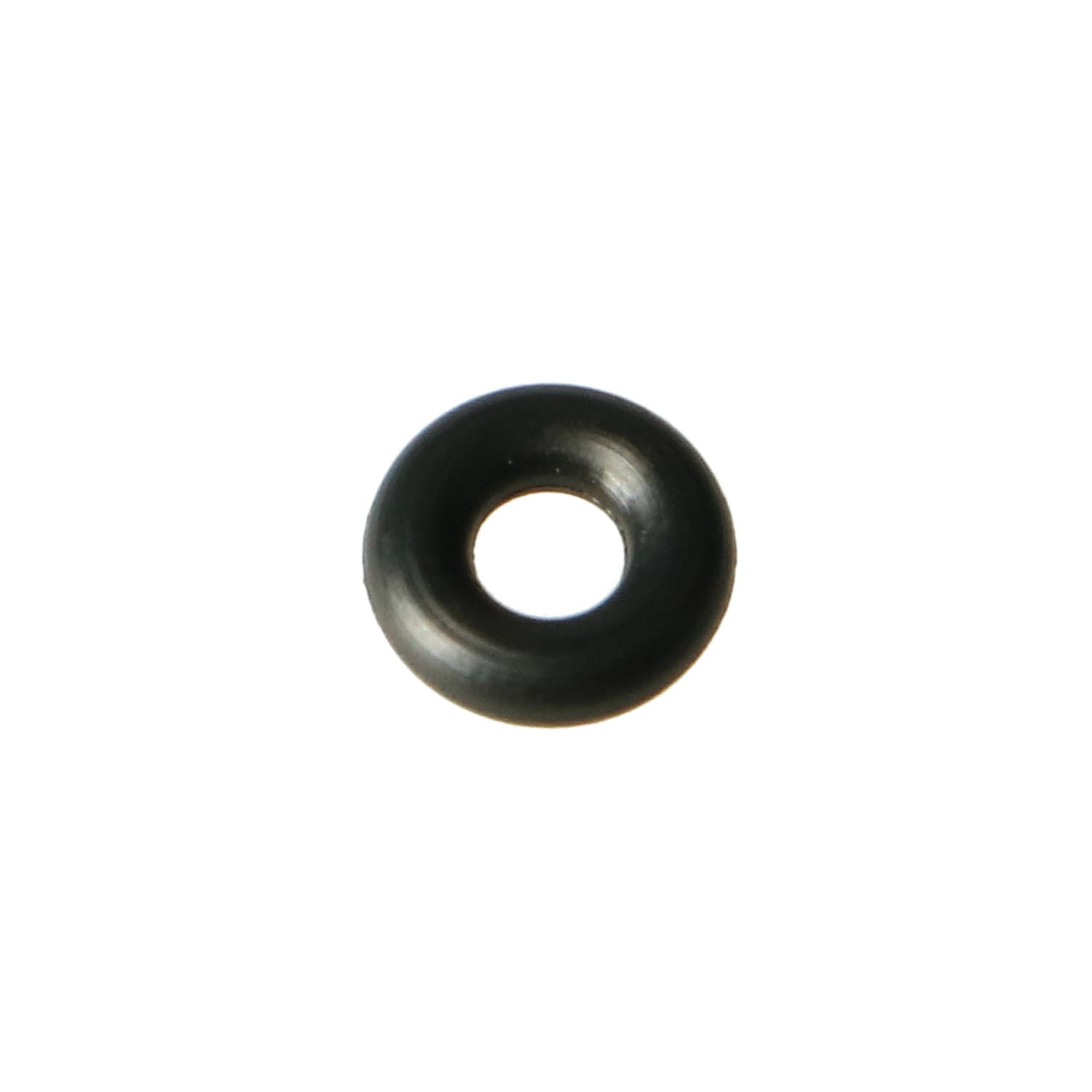

Seal (o-ring) H, 100 piece bag
8800572
Injection pen housing for MS Pulse 250
8802802
Injection pen for MS Pulse 250
8802803
Closing piece, 5 mm, for MS Pulse 250
8802804
Ball lock for MS Pulse 250
8802805
Dust sealing for MS Pulse 250
8802806
Nozzle nut for MS Pulse 250
8802807
Piston 80 mm + ring / sealing MS P250
8802808
Cylinder 80 mm aluminium for MS Pulse250
8802809
Sealing ring, 80 mm, for MS Pulse 250
8802810
Venting valve for MS Pulse 250
8802811
O-ring 80 mm cylinder base for MS P250
8802812
Dosing chamber outlet valve for MS P250
8802813
Dosing chamber 2011, MS P250 nozzle
8802814
Dosing chamber inlet valve for MS P250
8802815
Dose plunger 2011,MS P250 dosing chamber
8802816
Backer ring piston for MS P250
8802817
Orifice bullet 008 hole 1/4 for MS P250
8802818
Bottle mounting inlet valve MS P250
8802820
Timing chamber assembly for MS Pulse 250
8802821
Iron Ball, 1/8", inlet valve MS Pulse 50/250
8802822
Venting valve bottle mount. MS P50/250
8802823
Venting valve holder for MS P50/250
8802824
Slide valve clip for regulator P250
8802864
Top plate MS P250
8802908
Bottom plate MS P250
8802909
Clip for dose plug MS P250
8802910
Top plate 3mm for MS P250
8802911
Amplifier cover MS P250
8802913
Nut for needle bottle holder MS P50/P250
8802915
Push-in air fitting 1/8x6 mm for 1406500
8804807
Quick Coupling T-piece US 6 x 6 x 1/8"
8804844
Quick Coupling 90˚ US 1/8"
8804845
Quick Coupling T-piece US 1/8"
8804846
Quick Coupling 90˚ US M5 x 0,8”
8804847
Quick Coupling 90˚ US even
8804848
Air chamber valve US for MS P250
8804849
:format(webp)){kind=icon}
The MS BIZA Multi-Treatment Unit is an all-in-one solution for treating piglets quickly, efficiently and hygienically. Equipped with modules like automatic tagging (MS Tagmatic Evo), needle-free iron injection (MS Pulse), hands-free oral dosing and a safe tail docking tool, it minimizes stress, reduces cross-contamination and ensures precise care.
It saves time, lowers physical strain and boosts animal health. Still unsure? Discover all the benefits and find the right options for your farm in our detailed guide.
