What's the point of investing in a trimming chute if the herd is managed by a hooftrimmer ?

The two approaches work together. If the hoof trimmer visits monthly, they can handle both functional and curative trimming. With a good chute, the farmer can maintain care and address issues early to optimize results. However, if the trimmer only comes once or twice a year for functional trimming, investing in a chute becomes essential for managing all cases of lameness.

What's the difference between a holding cage and a hooftrimming chute ?

A hoof trimming chute is a specialized restraint cage designed for pedicure work. It’s tailored specifically for trimming, not for other tasks like blood sampling, drying off, drugging, or injections, which require different features.

Why to invest in a hydraulic chute ?

Hydraulic cages are semi-professional models, featuring advanced equipment like lifting systems, faster motors, and more power. They are designed to be highly ergonomic, making trimming much more comfortable. These improvements allow farmers to trim more efficiently, leading to earlier milking and better overall performance. While the initial investment is higher compared to electric models, hydraulic cages often pay for themselves over time.

How can I effectively prevent Mortellaro?

• Regular hooftrimming: Schedule trims, especially during drying-off and 100 days postpartum, to maintain hoof health and prevent lameness. • Hoof disinfection: Use disinfectants such as MS AutoHoofClean to regularly clean hooves and prevent new infections. • Hygiene measures: Ensure thorough cleaning and disinfection of trimming tools and equipment to prevent cross-contamination. • Boost immunity: Provide supplements like MS Ketoprotect Plus to improve hoof quality and overall immunity. • Maintain a dry environment: Keep the housing area dry to inhibit bacterial growth and reduce the risk of Mortellaro.

Klaux Hoof-trimming chute Rodium Master

Art. no.: 0604578

Brand:

Compare

Customer rating: 8.1/10

Knowledge center

Quality products

The Klaux Hoof-trimming chute Rodium Master is a fully hydraulic Hoof-trimming chute with a 380 V drive.

The Klaux Hoof-trimming chute Rodium Master is a professional and versatile Hoof-trimming chute that is ideal for the larger dairy farms, veterinarians and hoof care providers. The chute can be expanded as desired with different options.

Fully galvanized
Fully hydraulic
Double fixation bracket
LED lightning all around
Ergonomic for both cow and hoof trimmer
Can be expanded with various options
Internal: 225 x 73 x 176 cm (L x W x H)
External: 225 x 145 x 218 cm (L x W x H)

Application:

Hoof trimming
Hoof care

Tips for users:

Movable by means of lifting eyes or a set of wheels
Side hatches at the front legs
Heated material box, with lighting
Work is performed mainly with cylinders, so its operation is safe
Flat floor with no obstacles that the cow has to step over
Entry for the cow is 6cm
It contains 4 remote controlled functions Front doors, back door, winch for abdominal belt & winch for hind legs
The box is additionally raised at the workplace
Safe operation due to weak current (24Volt)
Suitable for 28.000 cows per year

Composition:

Catching door
Hydraulic double fixation bracket for hind legs
Hydraulic winch for hind legs
Hydraulic lifting system for the abdominal belt (no chain or rope)
Hydraulic winch for front legs
Bottom with rubber mat
Coupling piece for catch cage / waiting area
Tool holders
LED lightning all around
Power outlet
Claw block holder
Wireless remote control
Hind leg hook
2x Central emergency stop (excl. lighting)
Lifting eye to lift the chute
Manure grid on rear side of chute
Integrated 24 V control

Product dimensions:

Internal: 225 x 73 x 176 cm (L x W x H)
External: 225 x 145 x 218 cm (L x W x H)

Technical specifications:

Lift height: max 60 cm
Working height: max 35 cm

Specifics:

We offer a range of options to allow you to format the unit to suit your preferences. Please enquire about the possibilities.
Options are: Drift fences with wicket door, set of wheels, waiting area

Legal:

NEN 3140 certified

Door type	Catching door
Bottom cover	Rubber mat
Maximum lifting height	60 cm
Lift box elevation	Yes
Suitable for Jersey cows	No
Switch	Push button
Pieces	1
Inner dimensions (l x w x h)	225 x 73 x 176 cm
Usage intensity	Intensive
Warranty	1 year from delivery date, there is no warranty for wear and tear parts / improper use / breakage / failure to perform maintenance
Model	Rodium Master
Outside dimensions (l x w x h)	225 x 145 x 218 cm
Fixation bracket type	Hydraulic
Power drive	Power current
Double fixation bracket	Yes
Included / Features	Central emergency stop, Low current, No false light, Remote control, Tool holder
Document note	Always read the user manual before use.
Weight	1150 kg
Control	Hydraulic
Passage height	175 cm
Lighting	Yes
Voltage	380 V
Abdominal belt	Single
Material	Galvanized
Standards and certifications	NEN 3140
Animal group	Cattle
Operation	Remote control

Manual

Front leg hooks 63 mm for MS Hoof trimming chute Platinum & Silver, p/2

8804659

Supplies box, heated with lighting

8804664

Plastic front leg blocks with notch, per pair

8804758

Remote control for Titanium Pro and Rodium Master

8804778

Charger kit for remote control Titanium Pro and Rodium Master

8804781

Charger for remote control battery pack Titanium Pro and Rodium Master

8804782

Protective case for remote control Titanium Pro and Rodium Master

8804783

Shoulder strap for remote control Titanium Pro and Rodium Master

8804784

Receiver for remote control Titanium Pro and Rodium Master

8804785

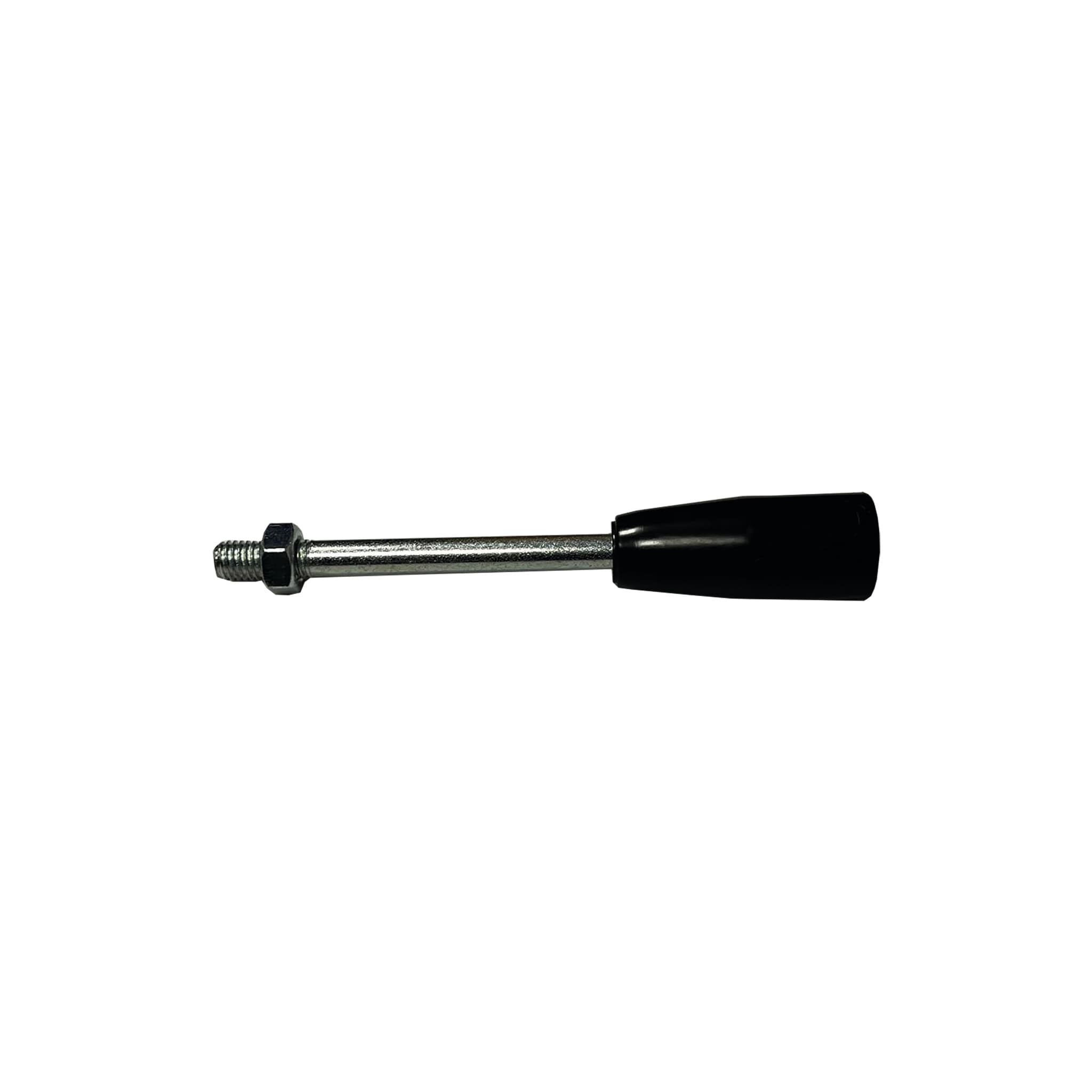

Control lever 120mm Hoof-trimming Chute Chrome/Rodium

8808015

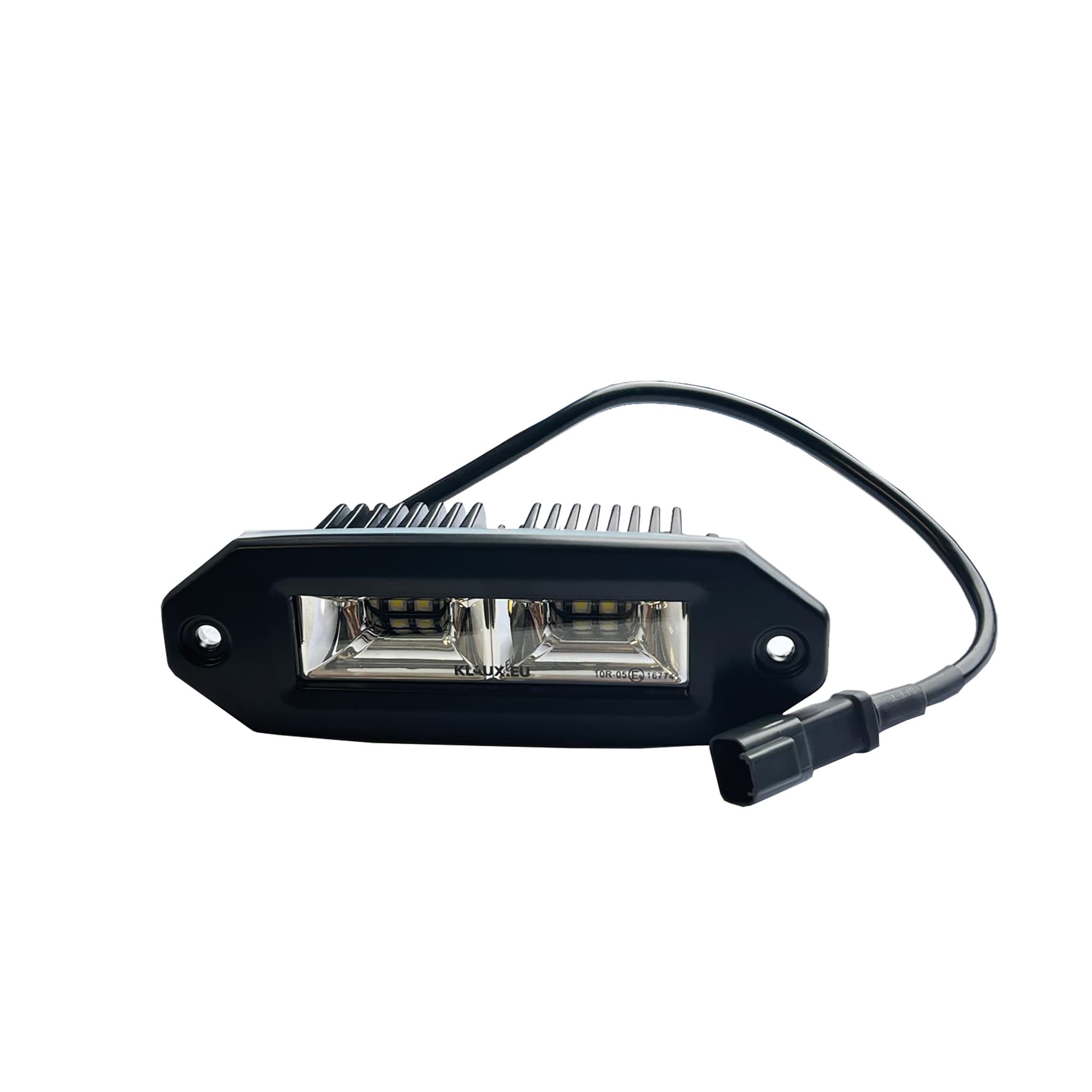

Built-in work lamp for Hoof-trimming Chute Chrome/Rodium

8808020

Quick-release belly band for Hoof-trimming Chute

8808025

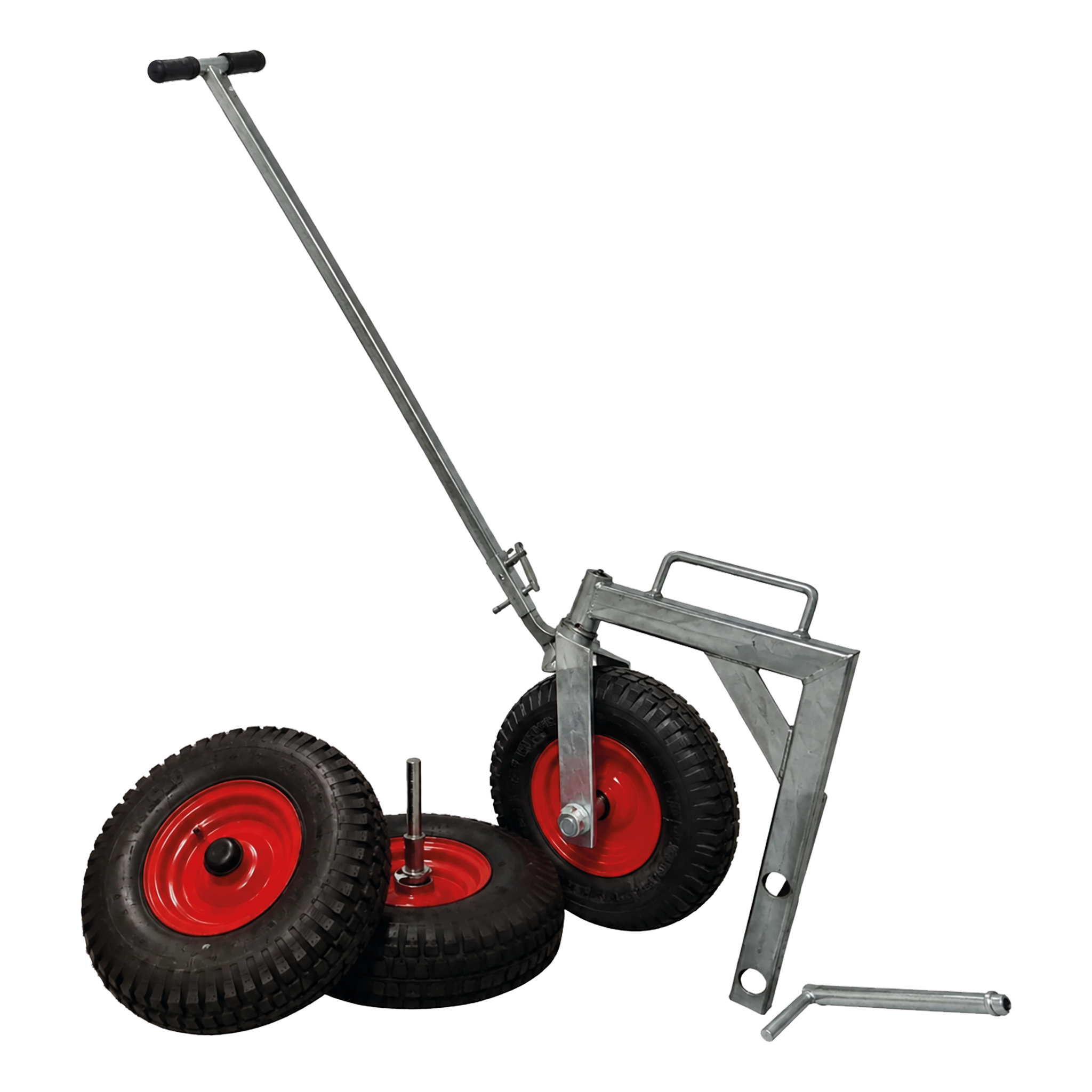

Wheel set for Hoof-trimming Chute Platinum comfort/Chrome/Rodium

8808027

Need help choosing?

A hoof trimming box makes hoof care faster, safer and more efficient, while reducing physical strain thanks to ergonomic features such as adjustable working height, remote control, and hydraulic functions. It helps prevent lameness and costly health issues in cows, leading to increased milk production. On top of that, it’s a long-term investment due to its durable materials and robust construction. Still unsure? Discover all the benefits and types of hoof trimming boxes in our detailed guide.

View hoof trimming chutes

Comparison Guide: choosing your hoof trimming chute

MS Hoof trimming chute

Silver

An entry-level model ideal for large-framed cows. Features electric winches (belly, front, and rear) and a double rear leg support. Powered by 230V with a checker plate floor (rubber insert optional). Simple, rugged, and budget-friendly.

MS Hoof trimming chute

Platinum

Enhanced safety with closed side panels and anti-slip flooring. Optimizes workflow with a rotating tool holder and 360° LED lighting. 180 cm internal height; includes two guiding gates.
