MS Digi Doser General 2

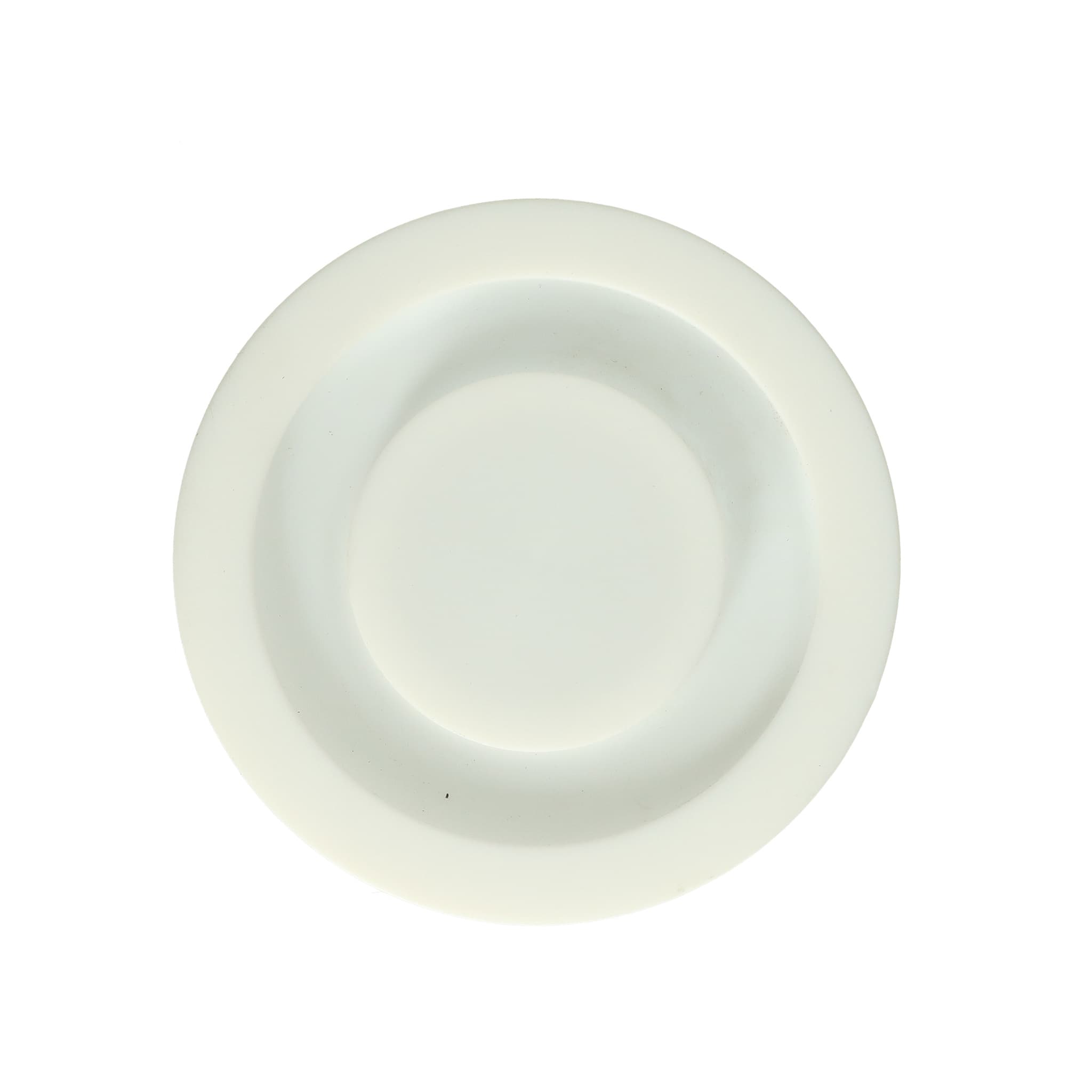

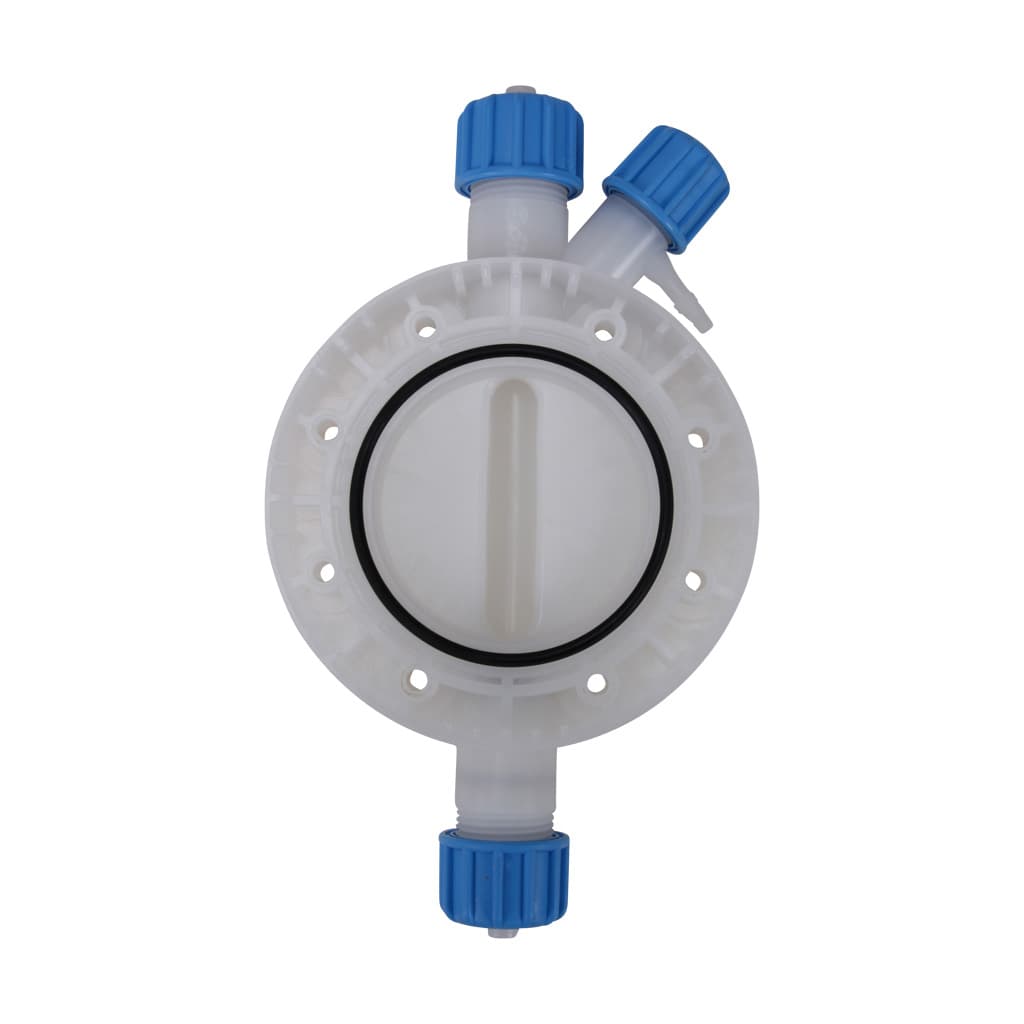

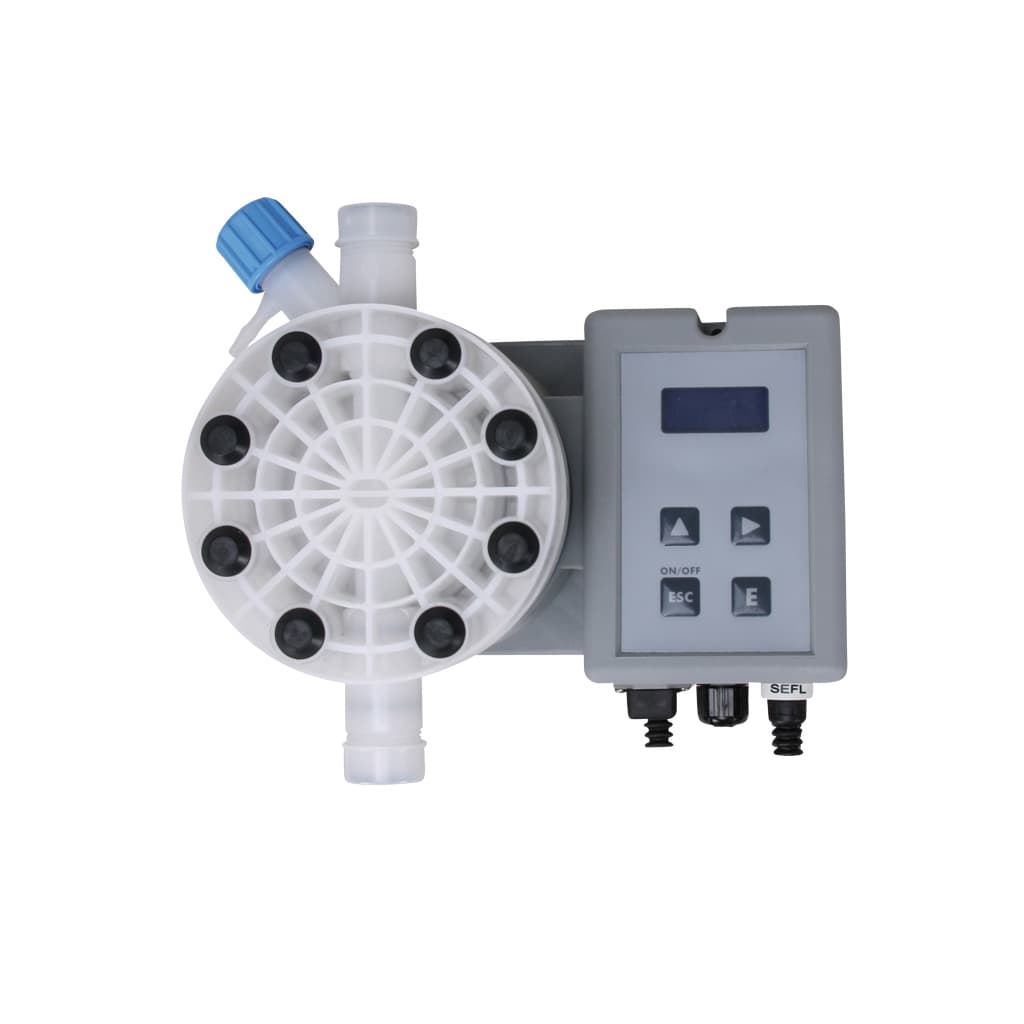

The Digi Doser General is a very solid dosage system for adding additives to the drinking water. The system is equipped with a digital diaphragm pump, which dispenses the correct amount of additive in the water pipe on the basis of pulses from a water meter. Among other things, this pump is suitable for dosing medication, vitamins, minerals and additives based on organic acids.

• Completely pre-assembled
• Robust system
• Easy to operate

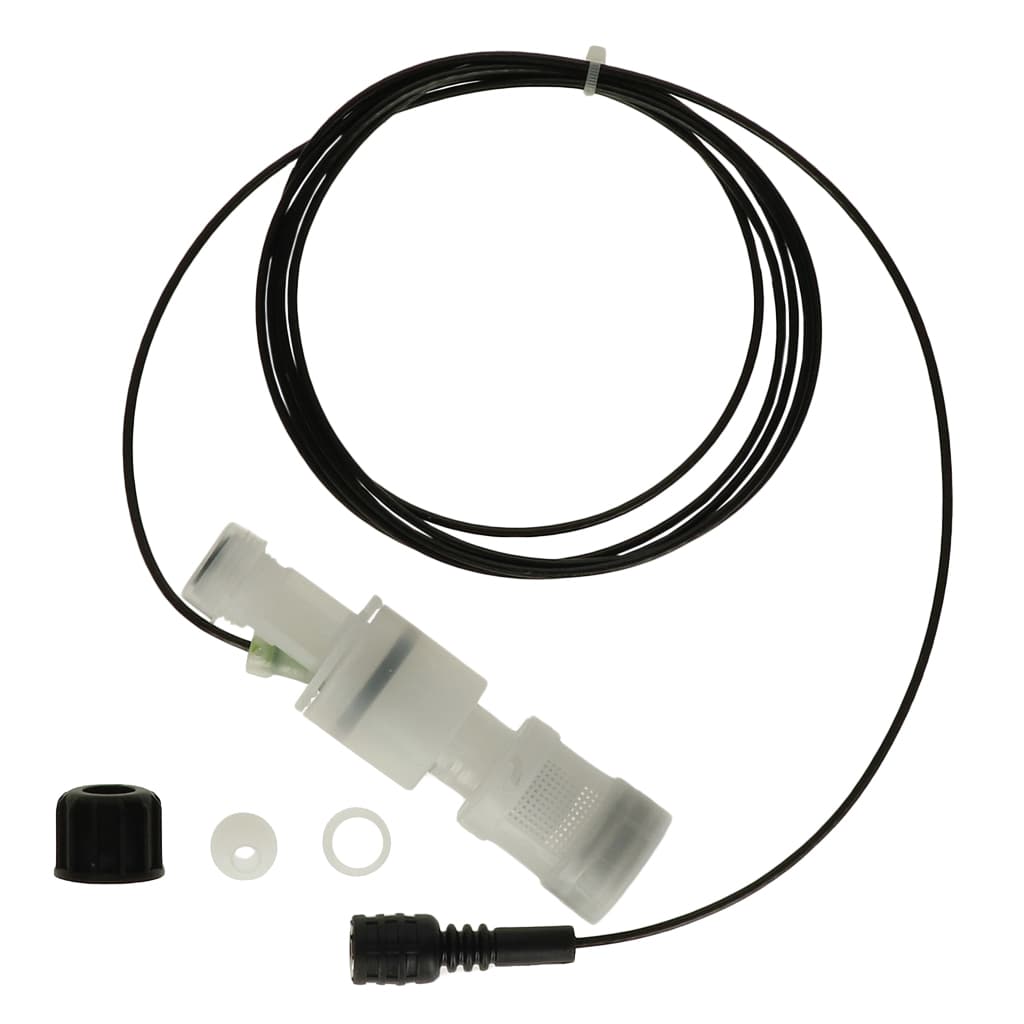

• Equipped with a float system with warning when empty
• Suitable for very accurate delivery of all kinds of additives

• Install a bypass so that the drinking water system is always usable, even during times of any possible fault or breakdown
• If the supply water contains (a little) dirt, install a water filter in front of the dosing system (4309554). This will avert water meter faults
• If the supply water pressure is higher than 3 bar, install a pressure reducer in front of the dosing system (8804050)
• In case of doubt about the flow capacity, water pressure or dosage, our employees are ready to advise you
• Upon startup or replacement of parts, the Digi Doser must be calibrated

• Throughput capacity: 15 - 2,500 l/hour
• Water pressure: 0.05 - 3 bar,
• Dosage: 0.1 – 1%
• Max. pump capacity: 30 l/hour
• Water meter pulses: 2 p/litre
• Input and output connections: PVC 40 mm – 40 mm
