What's the point of investing in a trimming chute if the herd is managed by a hooftrimmer ?

The two approaches work together. If the hoof trimmer visits monthly, they can handle both functional and curative trimming. With a good chute, the farmer can maintain care and address issues early to optimize results. However, if the trimmer only comes once or twice a year for functional trimming, investing in a chute becomes essential for managing all cases of lameness.

What's the difference between a holding cage and a hooftrimming chute ?

A hoof trimming chute is a specialized restraint cage designed for pedicure work. It’s tailored specifically for trimming, not for other tasks like blood sampling, drying off, drugging, or injections, which require different features.

Why to invest in a hydraulic chute ?

Hydraulic cages are semi-professional models, featuring advanced equipment like lifting systems, faster motors, and more power. They are designed to be highly ergonomic, making trimming much more comfortable. These improvements allow farmers to trim more efficiently, leading to earlier milking and better overall performance. While the initial investment is higher compared to electric models, hydraulic cages often pay for themselves over time.

How can I effectively prevent Mortellaro?

• Regular hooftrimming: Schedule trims, especially during drying-off and 100 days postpartum, to maintain hoof health and prevent lameness. • Hoof disinfection: Use disinfectants such as MS AutoHoofClean to regularly clean hooves and prevent new infections. • Hygiene measures: Ensure thorough cleaning and disinfection of trimming tools and equipment to prevent cross-contamination. • Boost immunity: Provide supplements like MS Ketoprotect Plus to improve hoof quality and overall immunity. • Maintain a dry environment: Keep the housing area dry to inhibit bacterial growth and reduce the risk of Mortellaro.

Klaux Hoof-trimming chute Chrome, back door position extended

Art. no.: 0604599

Brand:

This product cannot be ordered via the webshopNo rights may be derived from the information contained on this page

Customer rating: 8.1/10

Knowledge center

Quality products

The Klaux Hoof-trimming chute Chrome is a fully hydraulic Hoof-trimming chute with a double abdominal belt.

The Klaux Hoof-trimming chute Chrome is a complete and versatile Hoof-trimming chute that is ideal for dairy farms, veterinarians and hoof care providers.

Fully galvanized
Fully hydraulic
Double abdominal belt
Hind leg fixation
LED lightning all around
Ergonomic for both cow and hoof trimmer
Innovative, ergonomic leg system where the hoof is positioned straight
Overpressure protection for the hydraulic system
Back door adjustable in 3 positions
Can be expanded with various options
Internal: 230 x 78 x 180 cm (L x W x H)
External: 230 x 125 x 220 cm (L x W x H)

Application:

Hoof trimming
Hoof care

Tips for users:

Inward-opening catching door for maximum exit width.
Movable by means of lifting eyes or a set of wheels (option)
Flat floor with no obstacles that the cow has to step over
Extra comfortable due to the lift, enabling work at the correct height.
Suitable for 12.000 cows per year

Composition:

Catching door
Hydraulic rear section with fixation bracket for rear legs
Hydraulic winch for hind legs
Hydraulic winch for abdominal belt
Hydraulic winch for front legs
Set of 2 floating drift fences
LED lightning all around
Power outlet
Tool holders
3x Central emergency stop (including sockets for e.g., angle grinder, excl. lighting)
Lifting eye to lift the chute
Manure grid on rear side of chute

Product dimensions:

Internal: 230 x 78 x 180 cm (L x W x H)
External: 230 x 125 x 220 cm (L x W x H)

Technical specifications:

Lift height: max. 70 cm
Working height: max. 130 cm
External incl. max. lift/working height: 296 cm (H)
Voltage: 380V

Specifics:

We offer a range of options, such as a wheel set, trailer supports, or custom-made fencing, to allow you to format the unit to suit your preferences. Please enquire about the possibilities.

Legal:

NEN 3140 certified

Bottom cover	Rubber mat
Maximum lifting height	70 cm
Lift box elevation	Yes
Suitable for Jersey cows	Yes
Switch	Push button
Pieces	1
Inner dimensions (l x w x h)	230 x 78 x 180 cm
Usage intensity	Intensive
Warranty	1 year from delivery date, there is no warranty for wear and tear parts / improper use / breakage / failure to perform maintenance
Model	Chrome
Outside dimensions (l x w x h)	230 x 125 x 220 cm
Fixation bracket type	Hydraulic
Power drive	Power current
Double fixation bracket	Yes
Included / Features	Central emergency stop, Double belt, Low current, No false light, Tool holder
Document note	Always read the user manual before use.
Weight	1100 kg
Control	Hydraulic
Passage height	180 cm
Lighting	Yes
Voltage	380 V
Abdominal belt	Double
Material	Galvanized
Standards and certifications	NEN 3140
Animal group	Cattle
Operation	Manual
Door type	Catching door
Reason not returnable	This product is specially ordered for you and cannot be cancelled or returned after ordering.

Manual

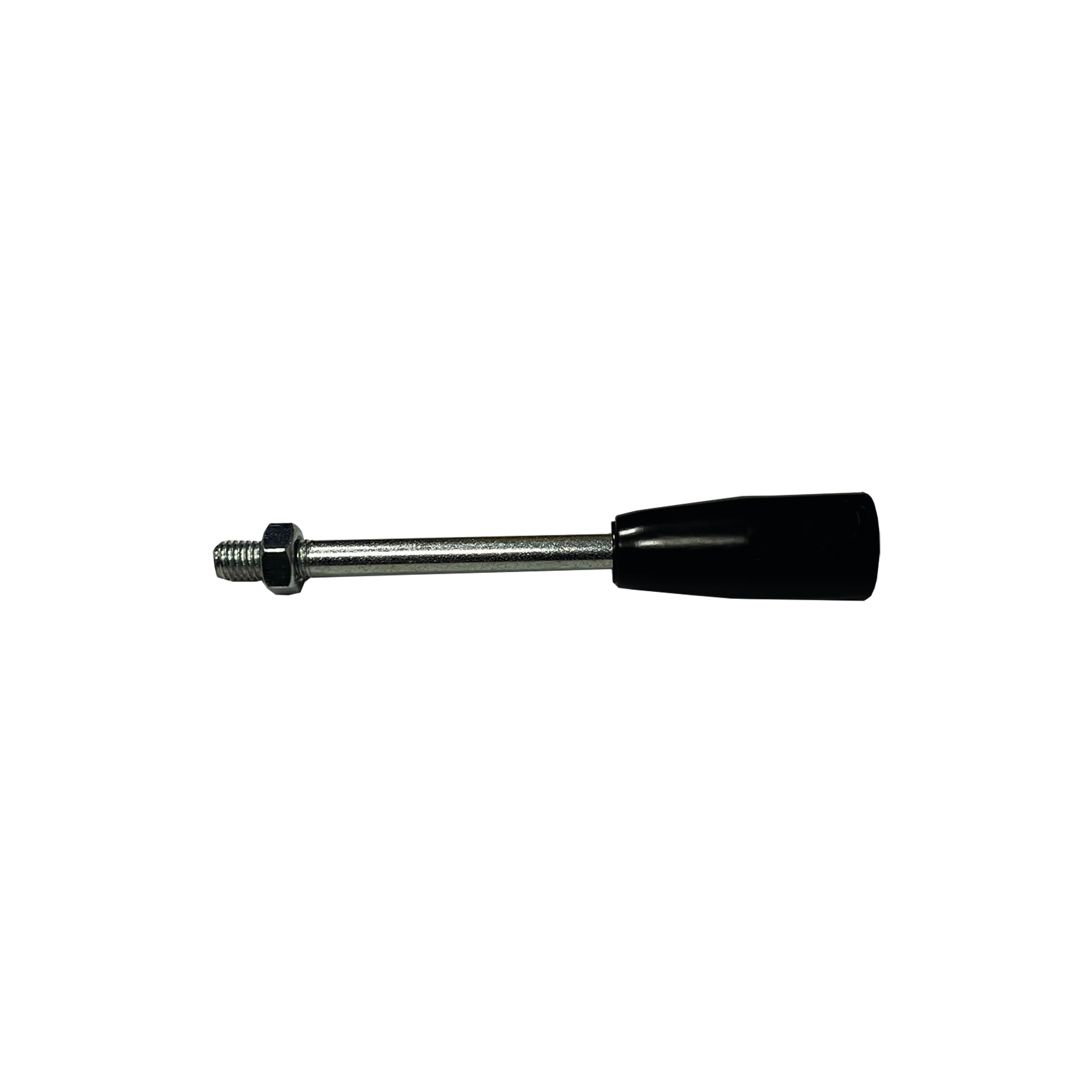

Control lever 120mm Hoof-trimming Chute Chrome/Rodium

8808015

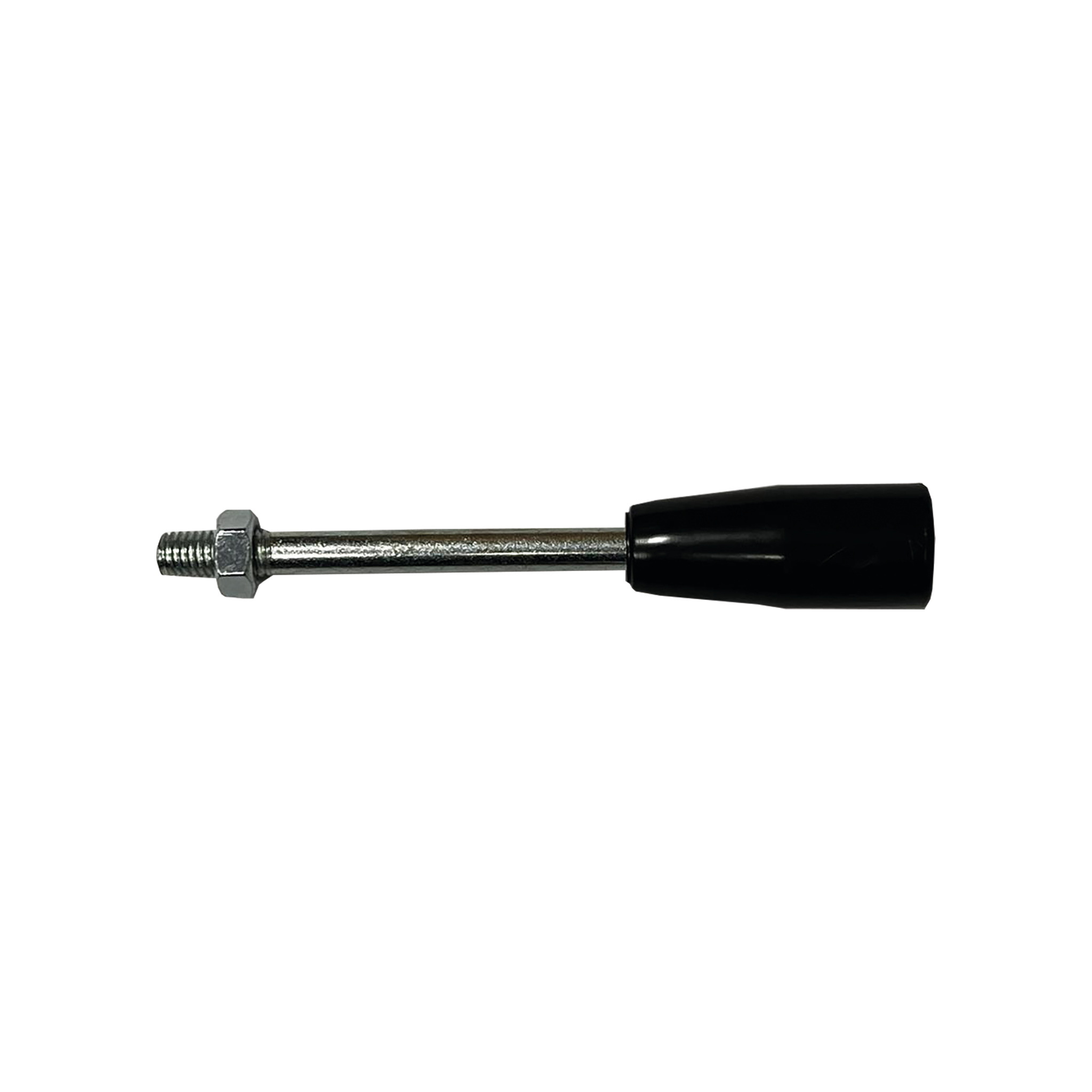

Control lever 150mm Hoof-trimming Chute Chrome/Rodium

8808016

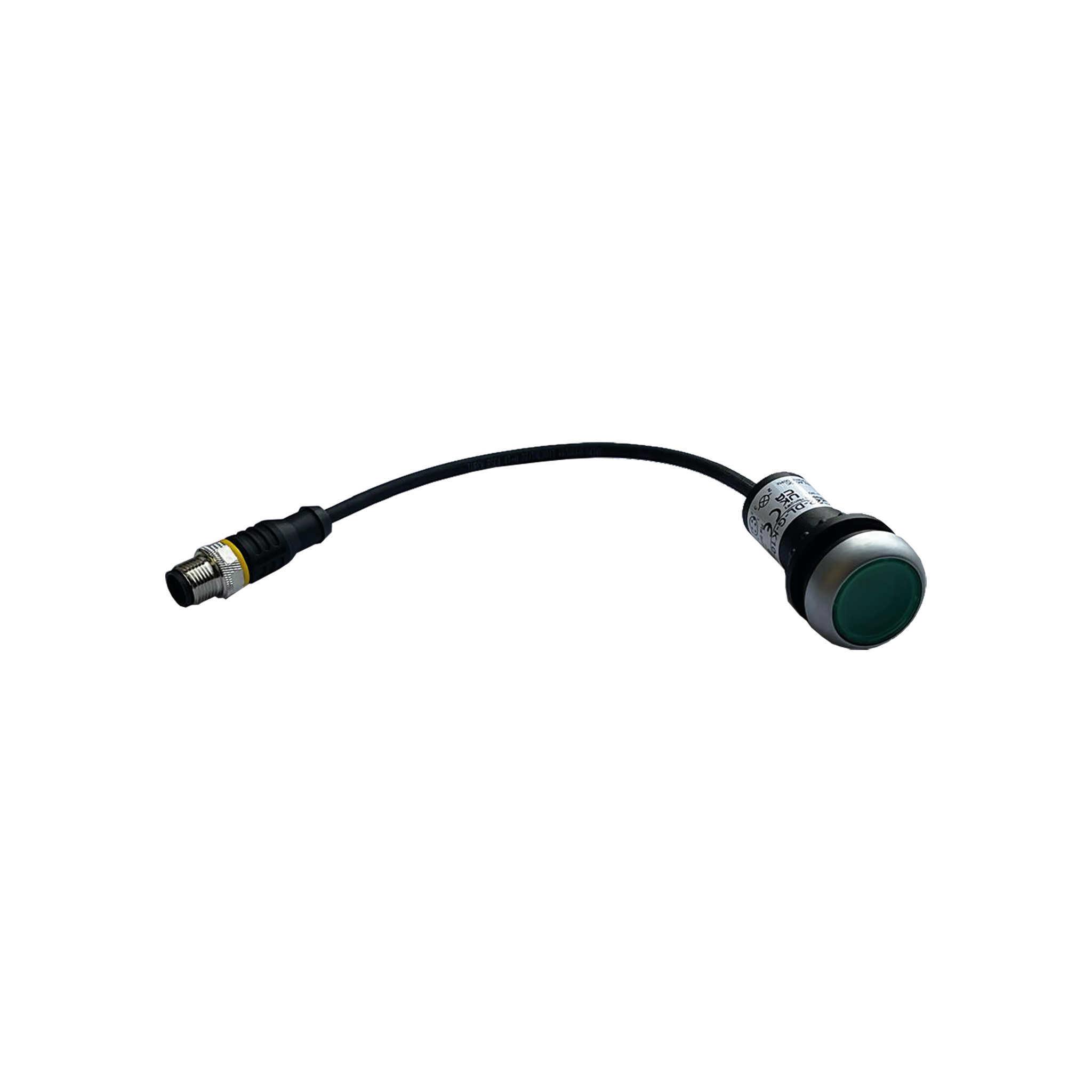

Start control button for Hoof-trimming Chute Chrome

8808017

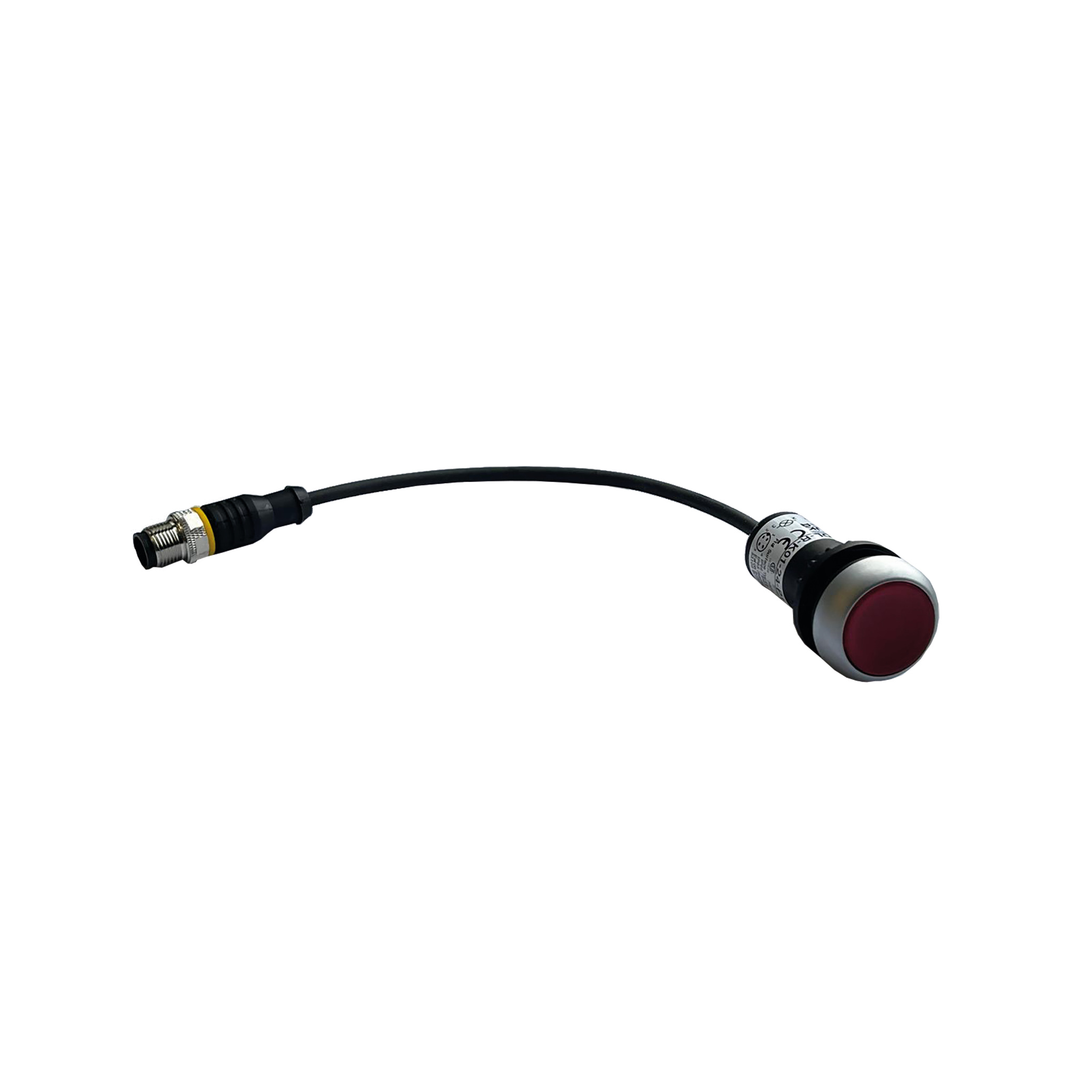

Control button Stop for Hoof-trimming Chute Chrome

8808018

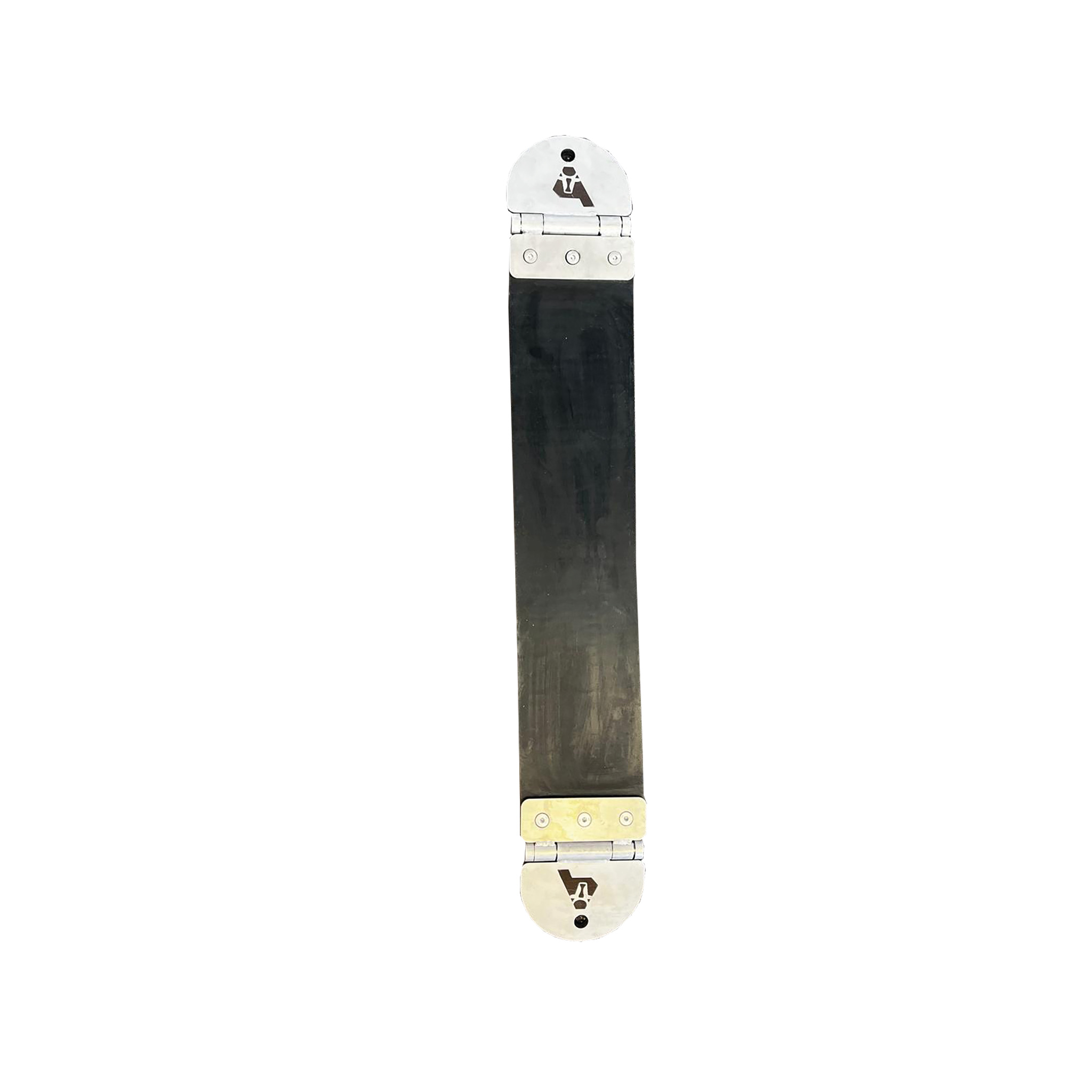

Extra heavy belly band for Hoof-trimming Chute Chrome

8808019

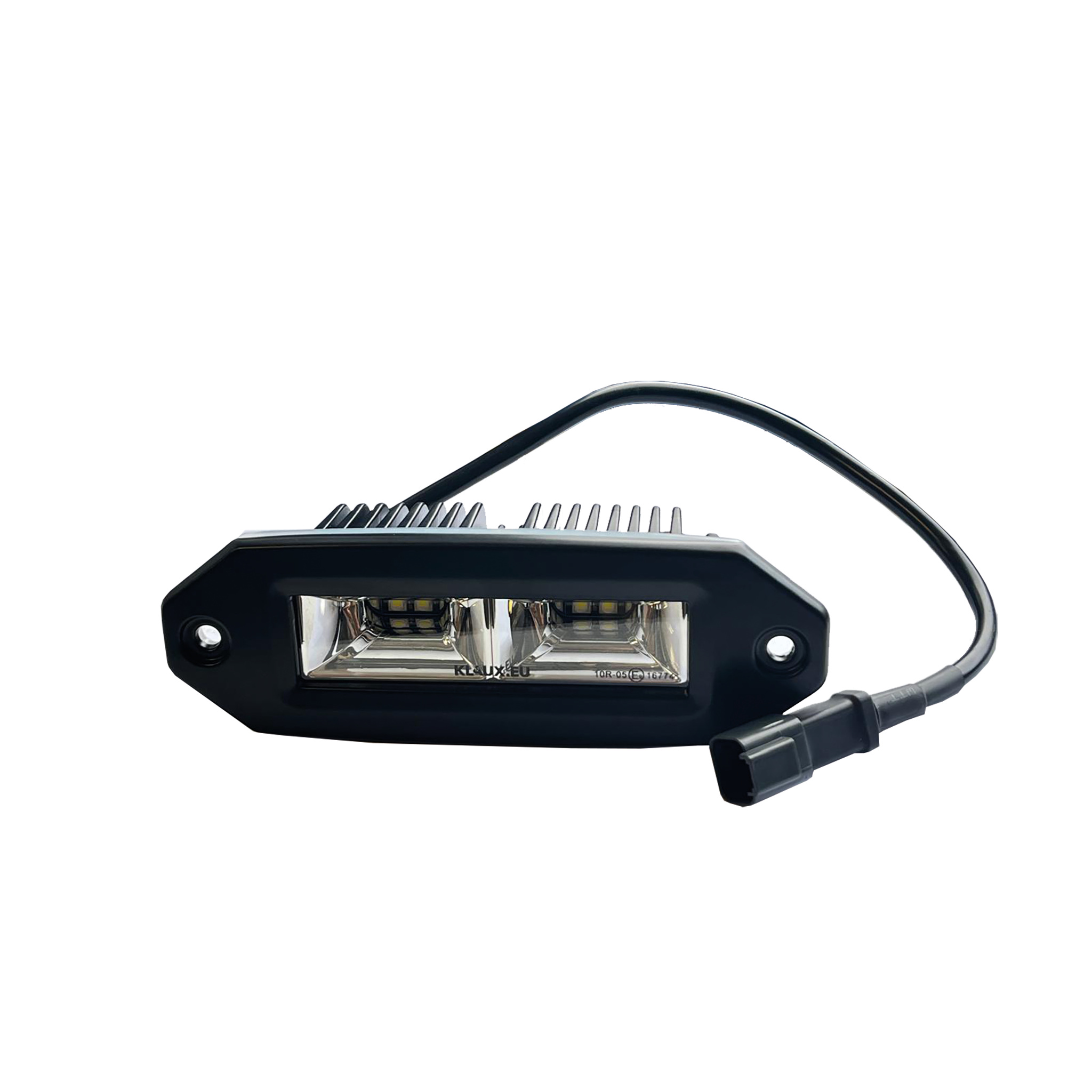

Built-in work lamp for Hoof-trimming Chute Chrome/Rodium

8808020

Wall plate incl. lock (set) for Hoof-trimming Chute

8808021

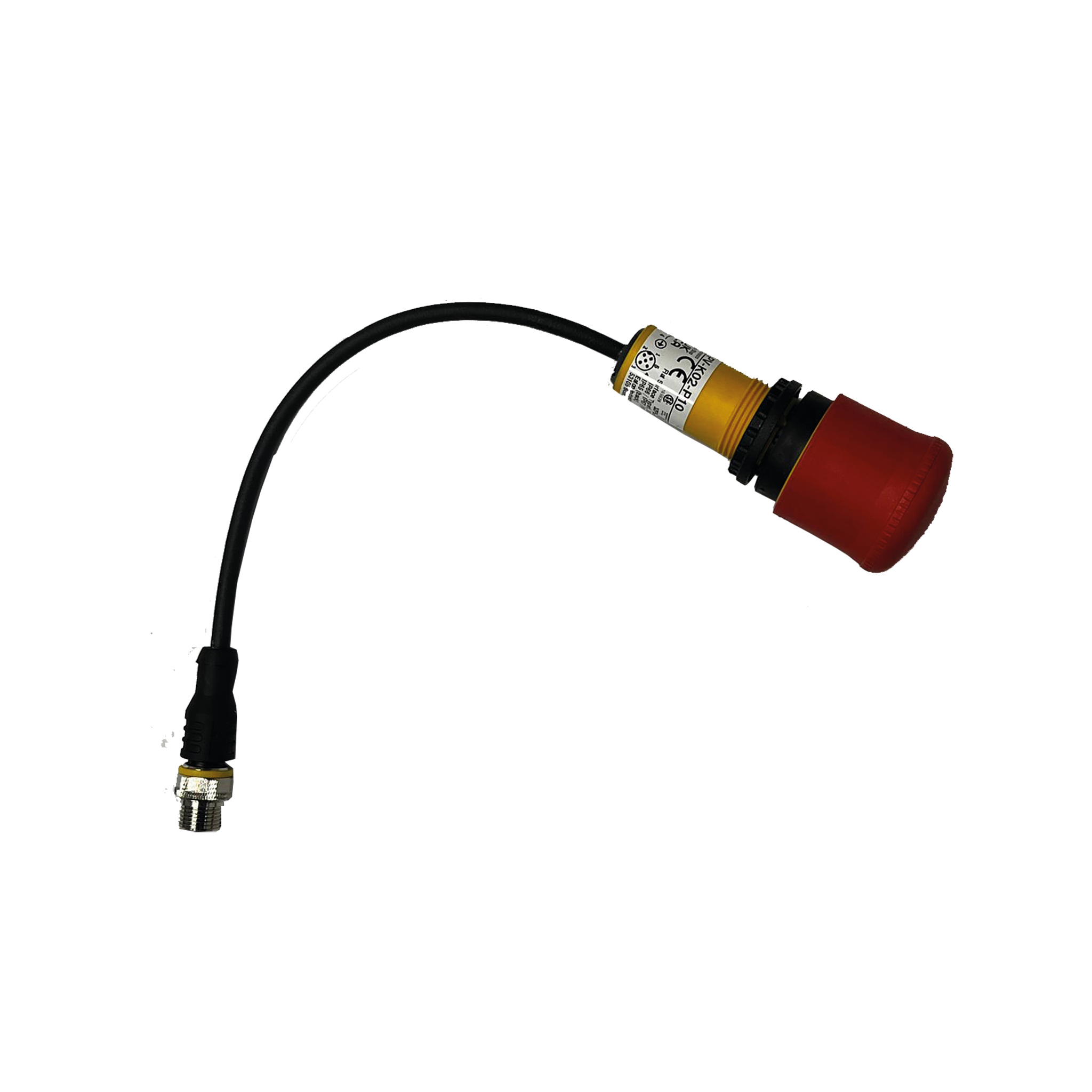

Emergency stop for Hoof-trimming Chute Chrome

8808022

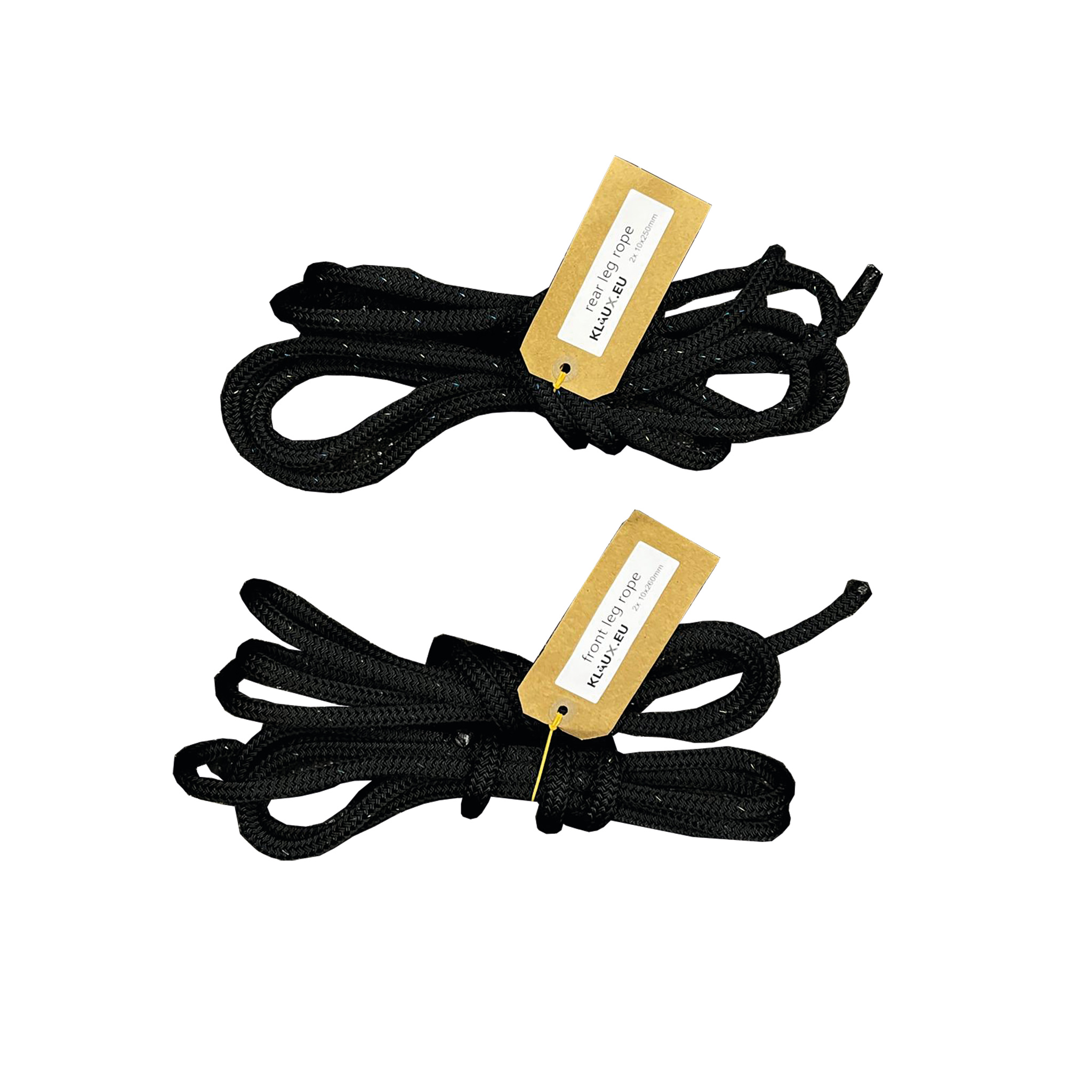

Set of rope legs for Hoof-trimming Chute Chrome

8808023

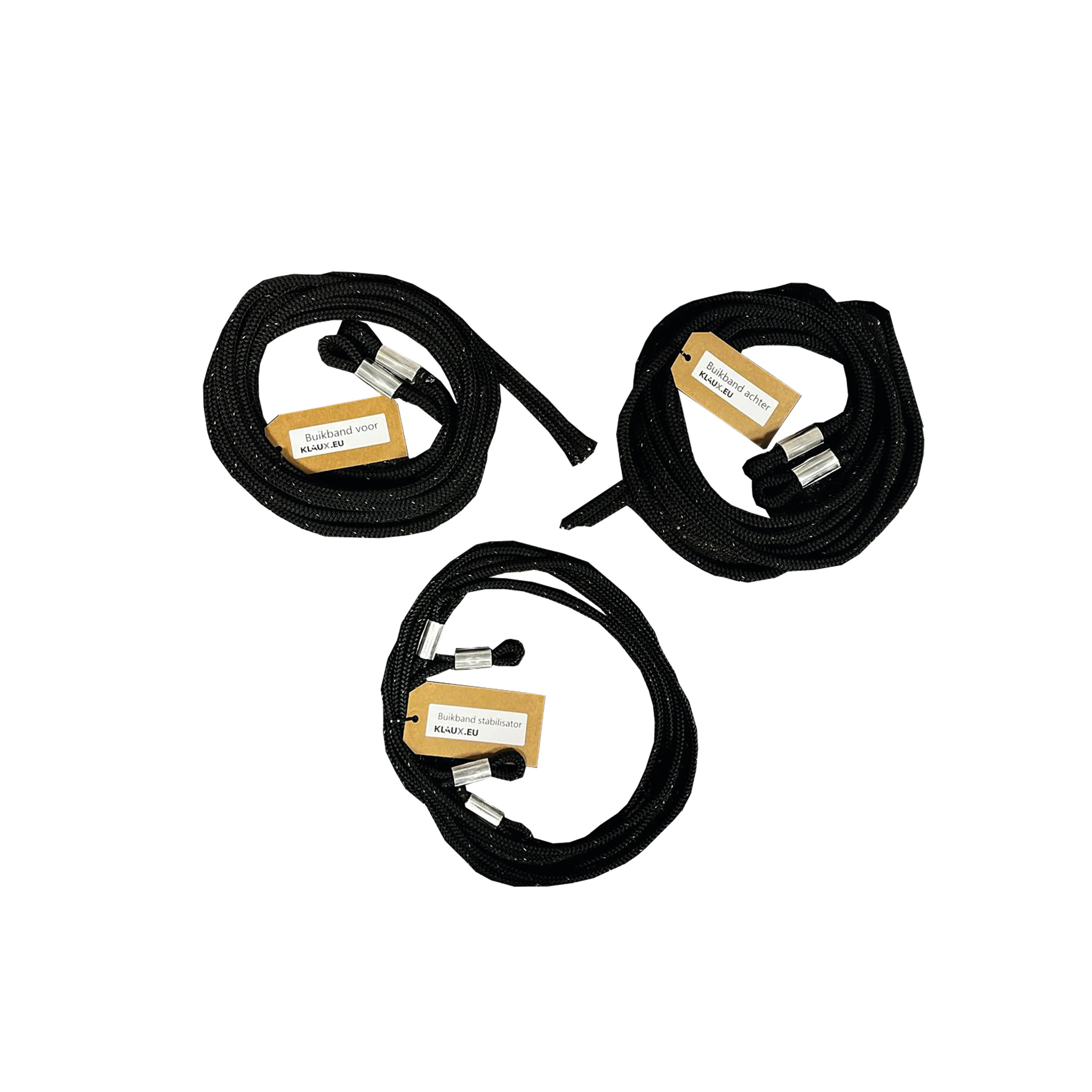

Set of ropes for belly band Hoof-trimming Chute Chrome

8808024

Quick-release belly band for Hoof-trimming Chute

8808025

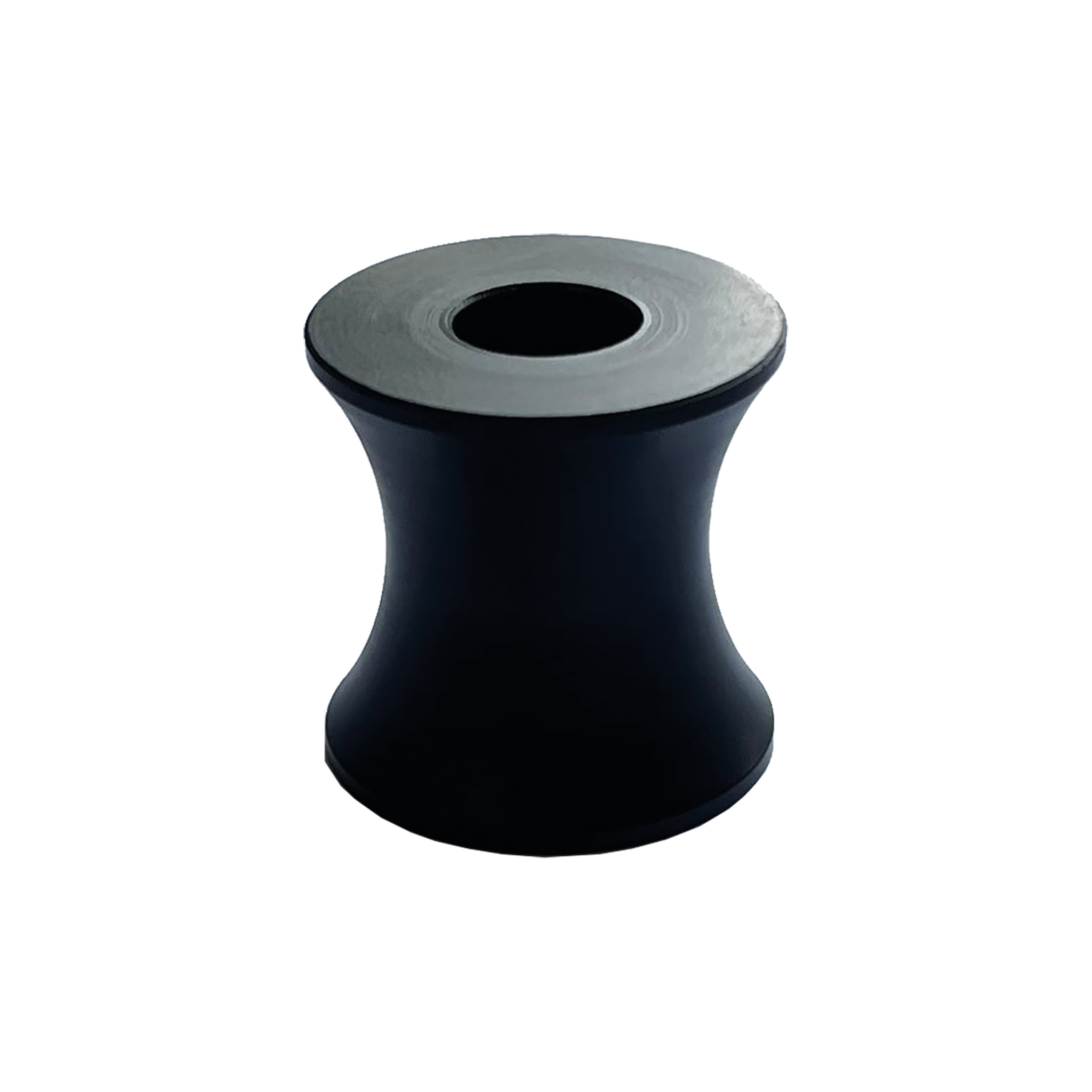

Rope guide roller for Hoof-trimming Chute Chrome

8808026

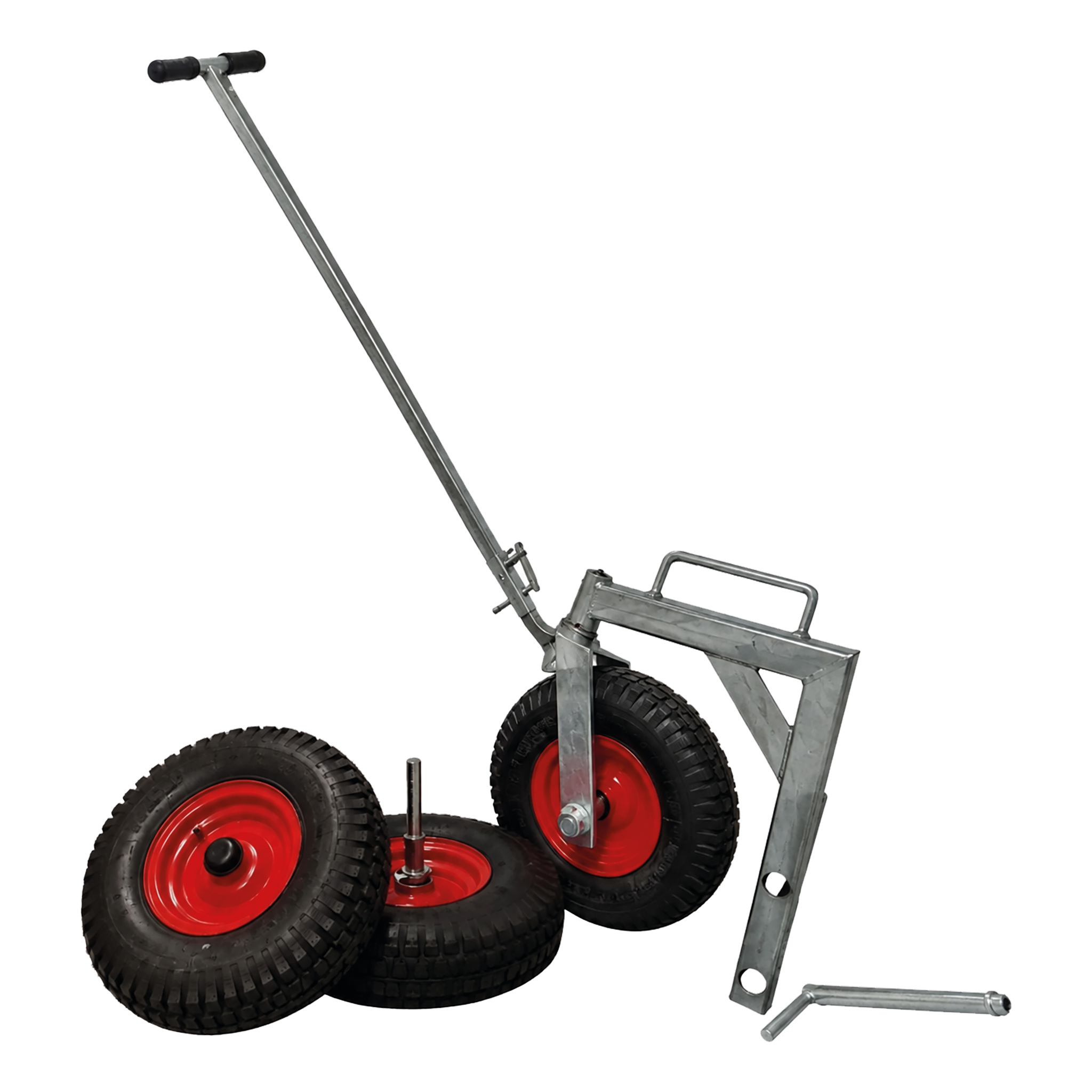

Wheel set for Hoof-trimming Chute Platinum comfort/Chrome/Rodium

8808027

Need help choosing?

A hoof trimming box makes hoof care faster, safer and more efficient, while reducing physical strain thanks to ergonomic features such as adjustable working height, remote control, and hydraulic functions. It helps prevent lameness and costly health issues in cows, leading to increased milk production. On top of that, it’s a long-term investment due to its durable materials and robust construction. Still unsure? Discover all the benefits and types of hoof trimming boxes in our detailed guide.

View hoof trimming chutes

Comparison Guide: choosing your hoof trimming chute

MS Hoof trimming chute

Silver

An entry-level model ideal for large-framed cows. Features electric winches (belly, front, and rear) and a double rear leg support. Powered by 230V with a checker plate floor (rubber insert optional). Simple, rugged, and budget-friendly.

MS Hoof trimming chute

Platinum

Enhanced safety with closed side panels and anti-slip flooring. Optimizes workflow with a rotating tool holder and 360° LED lighting. 180 cm internal height; includes two guiding gates.
